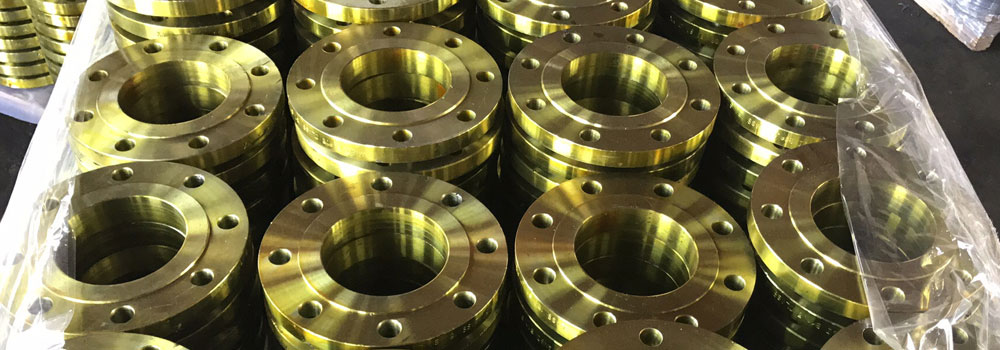

Copper Nickel 70/30 Flanges

Cu-Ni 70/30 Pipe Flange, ASTM B151 Copper Nickel 70/30 Weld Neck Flanges Supplier in India.

Because of their special qualities, copper-nickel 70/30 flanges are highly valued parts in a variety of industrial applications. This alloy, which is made up of 70% copper and 30% nickel, is well-known for its remarkable resistance to corrosion, especially in seawater settings, which makes it perfect for use in offshore and marine applications. Copper-nickel 70/30 flanges are frequently utilized in desalination plants, chemical processing facilities, and shipbuilding. They are frequently found in heat exchangers, piping systems, and other vital infrastructure components where durability and dependability are essential.
The 70/30 alloy's high nickel concentration improves its workability, resilience to stress corrosion cracking, and strength and durability. Because of this, it can be used in environments with high pressure and high temperatures. The alloy is especially useful in tough settings where other materials could fail because of its resistance to pitting and crevice corrosion.

ASME SB151 Copper Nickel 70/30 Orifice Flange, Cupro Nickel 70/30 Long Weld Neck Flanges Exporter.

The ability of copper-nickel 70/30 flanges to generate a coating of cuprous oxide on their surface, which serves as a barrier against further corrosion, is one of its main advantages. Over time, this self-healing characteristic serves to lower maintenance costs and prolong the life of the flanges. To ensure that the copper-nickel 70/30 flanges you choose will work with the system in which you use them, make sure they comply with all applicable industry standards and specifications. Maintaining optimal performance and safety also requires proper installation and routine inspection.

Copper Nickel 70/30 Flanges Specification

Specification : ASTM / ASME SB 61 / 62 / 151 / 152

Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Size : 1/2″ 36″

Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)s

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B151 Copper Nickel 70/30 Flanges at Best Price.

Call : +91-9820814560 or Send Enquiry

Copper Nickel 70/30 Pipe Flanges Manufacturing Standards :

ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Copper Nickel 70/30 Plate Flanges Available Type

Copper Nickel 70/30 Blind Flange

Copper Nickel 70/30 Threaded Flange

Copper Nickel 70/30 Orifice Flange

Copper Nickel 70/30 Weld Neck Flange

Copper Nickel 70/30 Slip on Flange

Copper Nickel 70/30 Long Weld Neck Flange

Copper Nickel 70/30 Spectacle Blind Flange

Copper Nickel 70/30 Socket Weld Flange

ASME SB151 Copper Nickel 70/30 Pipe Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS
Cu-Ni 70/30	2.0882	C71500

Chemical Composition of Grade 70/30 Copper Nickel Plate Flanges

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Cu-Ni 70/30	65.0 min	1.0 max	.05 max	29-33	0.4-1.0	1 max

Mechanical Properties of ASTM B151 Cu-Ni UNS C71500 Industrial Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Cu-Ni 70/30	0.323 lb/in3 at 68 F	2260 F	50000 psi	20000 psi	30 %

Other Types of Copper Nickel 70/30 Flanges

Copper Nickel 70/30 Flange
Copper Nickel 70/30 Threaded Flanges
Copper Nickel 70/30 Socket weld Flanges
ASTM B151 Copper Nickel 70/30 Slip on Flanges
70/30 Copper Nickel Weld Neck Flanges
Copper Nickel 70/30 Lap Joint Flanges
Copper Nickel 70/30 Blind Flanges
Cu-Ni 70/30 Pipe Flanges Stockist
Cupro Nickel 70/30 Plate Flanges Supplier
ASME SB151 70/30 Cu-Ni Spectacle Blind Flange
ASME B16.5 70/30 Copper Nickel Spacer
Copper Nickel 70/30 Nippolet Flange
70/30 Copper Nickel Hydraulic SAE Flanges Exporter
C71500 Copper Nickel Flexible Hose Flange
2.0882 Cu-Ni Tongue & Groove Flange Specification

70/30 Copper Nickel Orifice Flanges
70/30 Copper Nickel Forged Flanges
70/30 Copper Nickel SORF Flange
ASTM B151 Grade 70/30 Cu-Ni Ring Type Joint Flange
Copper Nickel 70/30 WNRF Flange Distributor
Copper Nickel 70/30 Puddle Flange Nipple
Cu-Ni 70/30 Long Weld Neck Flange Price
ASTM B151 70/30 Copper Nickel Square Flanges
Copper Nickel UNS C71500 Loose Flanges
Copper Nickel DIN 2.0882 Weldo Flange
70/30 Copper Nickel Reducing Flanges
Copper Nickel 70/30 Screwed Flanges Manufacturer
70/30 Cupro Nickel RTJ Flanges Dealer
Copper Nickel 2.0882 BLRF Flanges
Copper Nickel 70/30 Flanges
