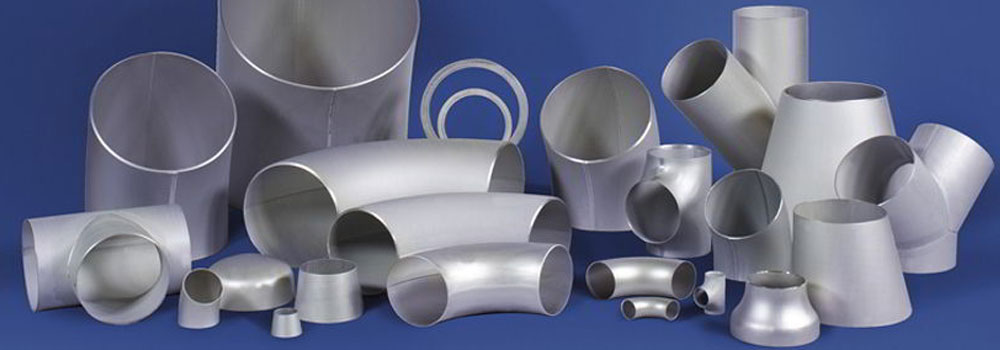

Incoloy 800 / 800H / 800HT Pipe Fittings

ASTM B366 Alloy 800 Cross, Incoloy Alloy 800H Pipe Tee, Incoloy 800HT Stub End Supplier in India.

The nickel-iron-chromium alloys Incoloy 800, 800H, and 800HT are renowned for their superior resistance to oxidation and corrosion at elevated temperatures. These materials find extensive use in power generating, petrochemical, and aerospace sectors, among other industrial uses. Typically, the composition of Incoloy 800, an alloy strengthened by solid solution, is composed of 30–35% nickel, 19–23% chromium, and the remaining iron. In hot conditions, it provides exceptional resistance to oxidation and carburization. Because of this, it can be used in industrial furnaces, heat exchangers, and other high-temperature machinery.
An improved version of Incoloy 800, Incoloy 800H has more carbon and other components like aluminum and titanium. Because of its improved strength and stability at higher temperatures, this composition is perfect for applications where strength is required, including in nuclear reactors and gas turbines. At higher temperatures, the alloy also exhibits better mechanical qualities and creep resistance.

Incoloy 800 / 800H / 800HT Pipe Fittings

Incoloy 800HT Short Radius Elbow, ASME SB366 Alloy 800H SR Elbow, Incoloy® Alloy 800 Seamless Pipe Fittings Exporter.

With additional improvements, the Incoloy 800HT expands the capabilities of the 800 series even further. Compared to 800H, it has higher amounts of titanium and carbon, giving it better strength at high temperatures and resistance to oxidation and carburization. Because of this, Incoloy 800HT is especially well suited for use in settings with significant mechanical stresses and considerable temperature swings, like petrochemical processing and sophisticated power generation systems.

Incoloy 800 / 800H / 800HT Pipe Fittings Specification

Specification : ASTM B366 / ASME SB366

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : Seamless Butt Weld Fittings: 1/2" - 10", Welded Butt Weld Fittings: 1/2" - 48"

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Type : Seamless / Welded / Fabricated

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B366 Incoloy 800 / 800H / 800HT Pipe Fittings at Best Price.

Call : +91-9820814560 or Send Enquiry

Incoloy 800 / 800H / 800HT Butt weld Fittings Available Type

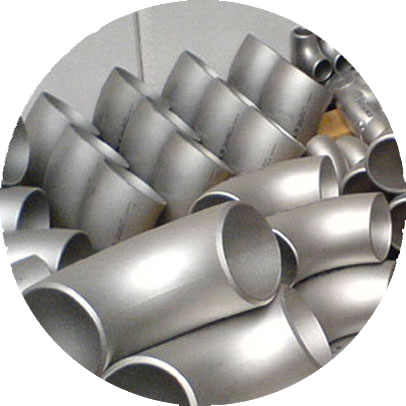

Incoloy 800 / 800H / 800HT Pipe Elbow

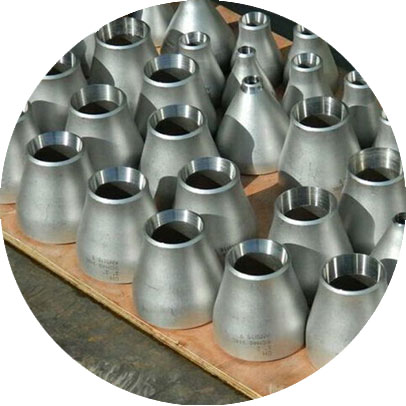

Incoloy 800 / 800H / 800HT Concentric Reducer

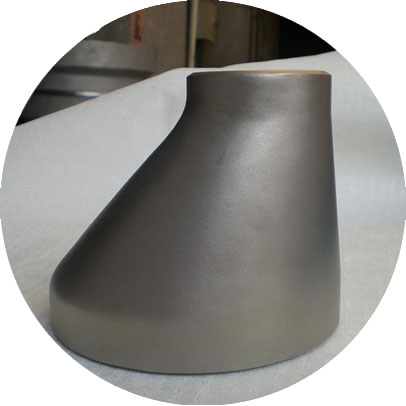

Incoloy 800 / 800H / 800HT Eccentric Reducer

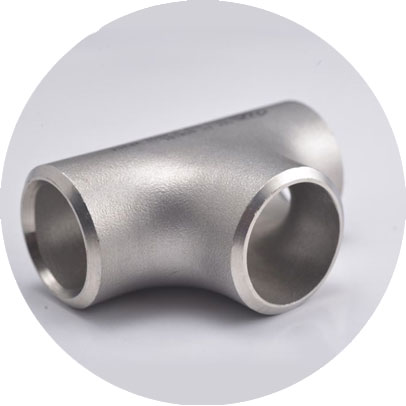

Incoloy 800 / 800H / 800HT Equal Tee

Incoloy 800 / 800H / 800HT Cross

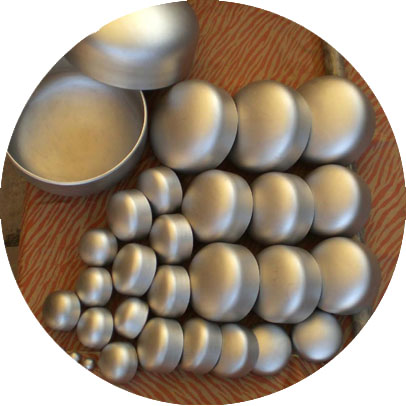

Incoloy 800 / 800H / 800HT Pipe Cap

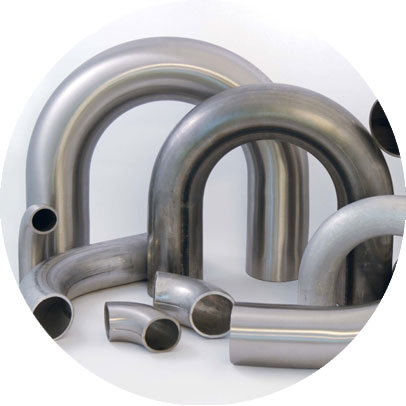

Incoloy 800 / 800H / 800HT Pipe Bend

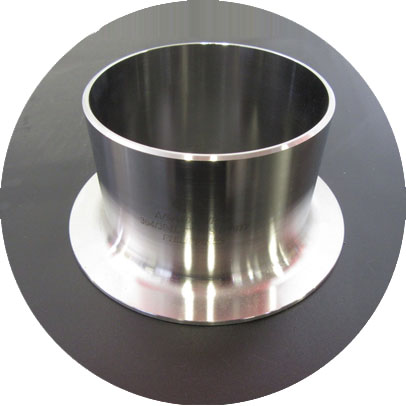

Incoloy 800 / 800H / 800HT Stub End

ASME SB366 Incoloy 800 / 800H / 800HT Butt weld Fittings Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Chemical Composition of Grade 800 / 800H / 800HT Incoloy Seamless Pipe Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Mechanical Properties of ASTM B366 Alloy UNS N08800 Pipe Fittings

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
