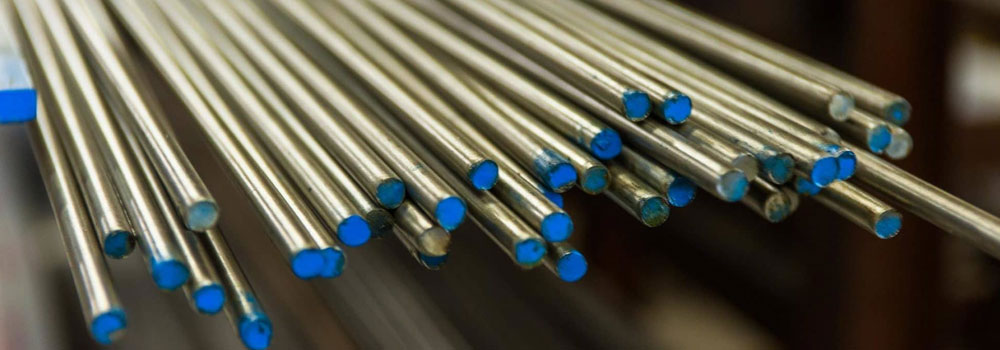

Incoloy 800 / 800H / 800HT Round Bar

Incoloy Alloy 800 Flat Bar, ASTM B408 Alloy 800H Rectangular Bar, 800HT Incoloy Round Bar Supplier in India.

The nickel-iron-chromium alloys Incoloy 800, 800H, and 800HT are made for high temperatures and have different properties that make them suitable for harsh settings. An excellent resistance to oxidation and carburization at high temperatures is what makes Incoloy 800 such a versatile alloy. About 30% of it contains nickel, 20% is chromium, and the remaining portion is iron. This composition offers significant resistance to a range of corrosive conditions, such as those encountered in the petrochemical, power generation, and chemical processing sectors. The alloy is appropriate for parts like heat exchangers, furnace parts, and industrial boilers because of its high strength and strong creep qualities.
An improved variant of Incoloy 800, called Incoloy 800H, was created with the express purpose of strengthening and stabilizing it at high temperatures. The optimized mechanical properties of the material are aided by the presence of titanium and extra carbon at specified amounts. Applications involving high temperatures and stress, including nuclear reactors and certain gas turbines, are common places for Incoloy 800H. Under extended temperature cycling, its enhanced creep resistance contributes to the preservation of structural integrity.

Incoloy 800HT Hex Bar, Incoloy® Alloy 800H Hexagonal Bar, ASME SB408 800 Incoloy Polished Bar Exporter.

Incoloy 800HT is a further refined variant of Incoloy 800H, with additional enhancements to its high-temperature capabilities. It is specifically engineered for applications requiring exceptional high-temperature strength and oxidation resistance. With higher levels of carbon and precise control over alloying elements, Incoloy 800HT is well-suited for extreme environments, including those in aerospace and industrial processes where temperatures can exceed those handled by Incoloy 800H.

Incoloy 800 / 800H / 800HT Round Bar Specification

Specification : ASTM B408 / ASME SB408

Size : 5 mm To 500 mm

Thickness : 50 mm to 8000 mm Long.

Length : 1 to 6 Meters, Custom Cut Lengthss

Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B408 Incoloy 800 / 800H / 800HT Round Bar at Best Price.

Call : +91-9820814560 or Send Enquiry

Incoloy 800 / 800H / 800HT Bars Available Type

Incoloy 800 / 800H / 800HT Bright Bar

Incoloy 800 / 800H / 800HT Square Bar

Incoloy 800 / 800H / 800HT Flat Bar

Incoloy 800 / 800H / 800HT Threaded Bar

Incoloy 800 / 800H / 800HT Hollow Bar

Incoloy 800 / 800H / 800HT Hexagonal Bar

Incoloy 800 / 800H / 800HT Triangular Bar

Incoloy 800 / 800H / 800HT Rods

ASME SB408 Incoloy 800 / 800H / 800HT Round Bar Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Chemical Composition of Grade 800 / 800H / 800HT Incoloy Bars / Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Mechanical Properties of ASTM B408 Alloy UNS N08800 Round Bar

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
