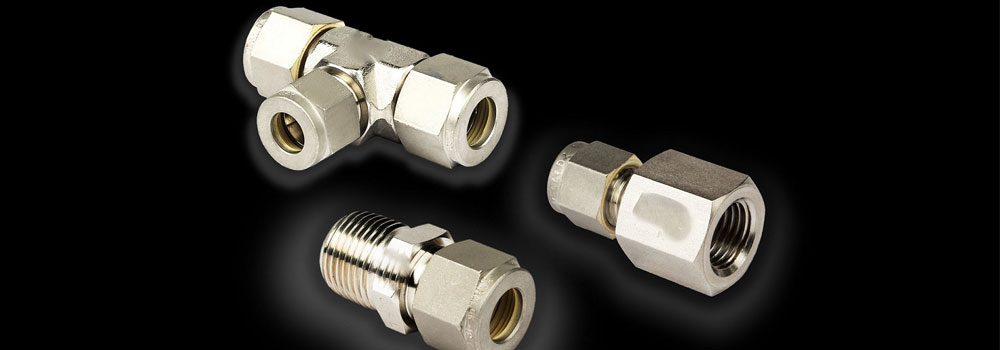

Incoloy 800 / 800H / 800HT Tube Fittings

Grade 800 Incoloy Tube Fittings, Incoloy Alloy 800H Instrumentation Fittings, Alloy 800HT Compression Tube Fittings Supplier in India.

High-performance nickel-iron-chromium alloys Incoloy 800, 800H, and 800HT are frequently utilized in corrosive and high-temperature settings. These alloys are very useful in the production of electricity, petrochemical processes, and chemicals. Excellent resistance to oxidation and carburization at elevated temperatures is a well-known attribute of Incoloy 800. It is usually employed in situations where the substance must endure temperatures as high as 650°C, or 1,200°F. This alloy has a balanced composition of about 21% chromium and 30% nickel, which gives it good resistance to a range of corrosive media and sulfur-containing gases.
An improved version of Incoloy 800 is called Incoloy 800H. It is appropriate for more demanding applications because of its increased creep and rupture strength at higher temperatures. Its strength and stability are increased by the inclusion of titanium and carbon in small amounts. Heat exchangers, other vital components in the petrochemical industry, and high-temperature furnace components are frequently made of Incoloy 800H, which can function efficiently at temperatures as high as 1,600°F (870°C).

Incoloy 800 / 800H / 800HT Tube Fittings

Incoloy 800HT Tube to Female Pipe, Incoloy JIS NCF 800H NPT Fittings, 800 Incoloy Alloy Male Connector Exporter.

An even better version of Incoloy 800H, Incoloy 800HT offers considerably more strength and stability at high temperatures. To increase its resistance to oxidation and carburization, it contains larger concentrations of carbon along with other elements like aluminum. As Incoloy 800HT can withstand temperatures of up to 1,800°F (980°C), it can be used in highly severe environments, such as gas turbines and nuclear reactors.

Incoloy 800 / 800H / 800HT Tube Fittings Specification

Specification : ASTM B366 / ASME SB366

Tube Size : 1/16”OD to 2”OD, 2mm OD to 50mm OD

Thread : NPT, BSP, BSPT, UNF, ISO, SAE etc.

Pressure Rating : 6000PSI for Nickel Alloy, 300/1000/3000PSI for Brass

Applicable Temperature : 150-400°C

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B366 Incoloy 800 / 800H / 800HT Tube Fittings at Best Price.

Call : +91-22-6610 9526 or Send Enquiry

Incoloy 800 / 800H / 800HT Tube Fittings Available Type

Incoloy 800 / 800H / 800HT Tube to Union

Incoloy 800 / 800H / 800HT Tube to Male Fittings

Incoloy 800 / 800H / 800HT Tube to Pipes

Incoloy 800 / 800H / 800HT Tube to Female Pipes

Incoloy 800 / 800H / 800HT Single Ferrule Fittings

Incoloy 800 / 800H / 800HT Double Ferrule Fittings

Incoloy 800 / 800H / 800HT Male Connector

Incoloy 800 / 800H / 800HT Union Elbow

Incoloy 800 / 800H / 800HT Bulkhead Connector

ASME SB366 Incoloy 800 / 800H / 800HT Tube Fittings Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Chemical Composition of Grade 800 / 800H / 800HT Incoloy Compression Tube Fittings

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Mechanical Properties of ASTM B366 Alloy UNS N08800 Instrumentation Fittings

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %

800 Incoloy Male Bulkhead Connector
800HT Incoloy Female Bulkhead Connector
800 Incoloy Bulkhead Union
ASTM B366 Grade 800 Alloy Union Elbow
Incoloy 800H Male Elbow Distributor
Incoloy 800 Front Ferrule Fittings
Incoloy 800HT Tube Fittings Price
ASTM B366 800 Incoloy Back Ferrule Fittings
Incoloy UNS N08810 Male Adapter
Incoloy DIN 1.4859 Female Elbow
800 Incoloy Union Cross
Incoloy 800H Union Tee Manufacturer
800 Incoloy Reducing Union Tee Dealer
Incoloy 1.4958 Bulkhead Elbow
Incoloy UNS N08811 Tube Fittings
