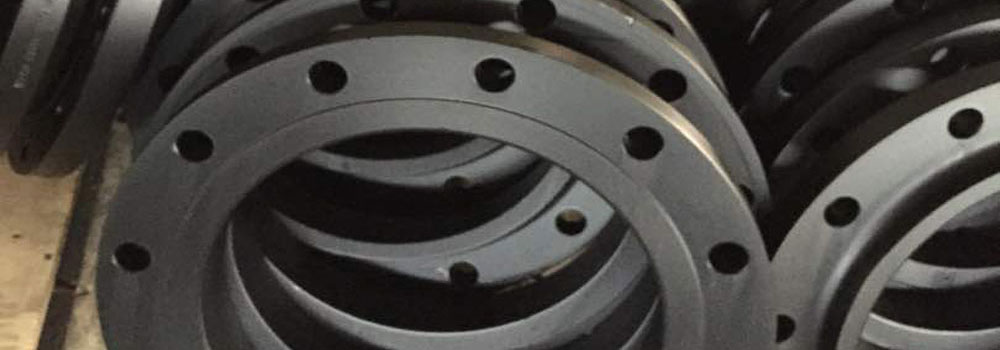

In high-temperature and high-pressure piping systems, which are frequently utilized in the petrochemical, power generation, and aerospace industries, alloy steel F22 flanges are essential parts. These flanges are made of ASTM A182 F22 alloy steel and are intended to deliver reliable performance in harsh settings. Low-alloy steel with elements like molybdenum (1.0%) and chromium (2.25%) is known as ASTM A182 F22. These components improve the steel's hardness, strength, and resistance to heat. The steel is meant to be used in elevated-temperature operation, usually up to about 650°C (1200°F), according to the F22 designation. The alloy is perfect for applications involving steam, hot gases, and other high-temperature fluids because of its exceptional thermal stability and resistance to oxidation.
Different varieties of F22 flanges, such as slip-on, weld neck, blind, and threaded, are available to meet different installation and operational requirements. Weld neck flanges are recommended because of their robust weld connection and capacity to sustain high pressure, although slip-on flanges are simpler to install and align. Pipes are sealed off using blind flanges, which lack a central hole, and threaded flanges make assembly and disassembly simple.
Usually, these flanges are produced in accordance with ASME B16.5 or B16.47 specifications, guaranteeing their compatibility with other pipeline parts and compliance with industry laws. To achieve the required mechanical qualities and guarantee the flanges' dependability in service, suitable heat treatment and manufacturing procedures are essential. Because Alloy Steel F22 flanges combine strength, endurance, and resistance to adverse conditions, they are crucial for guaranteeing the effectiveness and safety of high-temperature and high-pressure systems.
Specification : ASTM A182 / ASME SA182
Dimension : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Size : 1/2" - 48"
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Class / Pressure Rating : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Origin : Indian Origin, European Origin, Japanese Origin
Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports
Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests
A Wide Range of ASTM A182 Alloy Steel F22 Flanges at Best Price.
Call : +91-9820814560 or Send Enquiry
Alloy Steel F22 Blind Flange
Alloy Steel F22 Threaded Flange
Alloy Steel F22 Orifice Flange
Alloy Steel F22 Weld Neck Flange
Alloy Steel F22 Slip on Flange
Alloy Steel F22 Long Weld Neck Flange
Alloy Steel F22 Spectacle Blind Flange
Alloy Steel F22 Socket Weld Flange
Alloy Steel F22 Flange
Alloy Steel F22 Threaded Flanges
Alloy Steel F22 Socket weld Flanges
ASTM A182 Alloy Steel F22 Slip on Flanges
F22 Alloy Steel Weld Neck Flanges
Alloy Steel ASTM A182 F22 Lap Joint Flanges
Alloy Steel F22 Blind Flanges
Chrome Moly F22 Pipe Flanges Stockist
Chrome Moly F22 Plate Flanges Supplier
ASME SA182 F22 Alloy Steel Spectacle Blind Flange
ASME B16.5 F22 Alloy Steel Spacer
Alloy Steel Grade F22 Nippolet Flange
F22 CrMo Hydraulic SAE Flanges Exporter
F22 Alloy Steel Flexible Hose Flange
Alloy Steel F22 Tongue & Groove Flange Specification
Grade F22 Alloy Steel Orifice Flanges
F22 Alloy Steel Forged Flanges
F22 Alloy Steel SORF Flange
ASTM A182 F22 CrMo Ring Type Joint Flange Manufacturer
Alloy Steel F22 WNRF Flange Distributor
Alloy Steel F22 Puddle Flange Nipple
Alloy Steel F22 Long Weld Neck Flange Price
ASTM A182 F22 Alloy Steel Square Flanges
Alloy Steel Grade F22 Loose Flanges
Alloy Steel Gr F22 Weldo Flange
Grade F22 Alloy Steel Reducing Flanges
Alloy Steel F22 Screwed Flanges
Chrome Moly F22 RTJ Flanges Dealer
Chrome Moly Alloy Steel F22 BLRF Flanges
Grade F22 Alloy Steel Flanges
