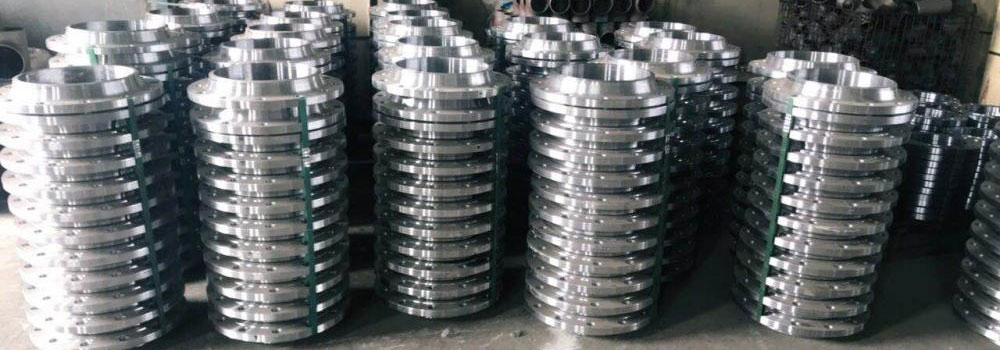

Incoloy 800 / 800H / 800HT Flanges

ASTM B564 Alloy 800 Socket weld Flanges, Incoloy 800H SORF Flanges, Incoloy Alloy 800HT Forged Flanges Supplier in India.

High-performance nickel-iron-chromium alloys like Incoloy 800, 800H, and 800HT are renowned for their superior resistance to oxidation, carburization, and high temperatures. These alloys are frequently utilized in industrial settings where strength and longevity are essential. The base alloy in this family is called Incoloy 800, and it is mostly made up of 30% nickel, 20% chromium, and the remaining iron. Because of its composition, which offers exceptional resistance to oxidation and carburization, it can be used in a variety of high-temperature settings, including heat exchangers and furnace components. Up to about 1,700°F (925°C), the alloy retains good strength and resistance to thermal creep.
With extra elements including carbon (0.05–0.10%) and fine control over other impurities, Incoloy 800H is an improved version of Incoloy 800. The strength and resistance of the alloy to stress rupture and creep at high temperatures are enhanced by this combination. Applications requiring extended exposure to high temperatures, such petrochemical factories and power generating, frequently use Incoloy 800H.

Incoloy 800HT Threaded Flanges, High Quality 800H Incoloy Ring Type Joint Flanges, ASME SB564 Alloy 800 Orifice Flange Exporter.

With more carbon and better control over silicon and aluminum, Incoloy 800HT is an even more sophisticated version of Incoloy 800H. Its high-temperature stability and strength are improved by these modifications, which make it perfect for extremely demanding environments like nuclear reactors and high-temperature industrial processes.

Incoloy 800 / 800H / 800HT Flanges Specification

Specification : ASTM B564 / ASME SB564

Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Size : 1/2″NB TO 60″NB

Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)s

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B564 Incoloy 800 / 800H / 800HT Flanges at Best Price.

Call : +91-9820814560 or Send Enquiry

Incoloy 800 / 800H / 800HT Pipe Flanges Manufacturing Standards :

ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Incoloy 800 / 800H / 800HT Plate Flanges Available Type

Incoloy 800 / 800H / 800HT Blind Flange

Incoloy 800 / 800H / 800HT Threaded Flange

Incoloy 800 / 800H / 800HT Orifice Flange

Incoloy 800 / 800H / 800HT Weld Neck Flange

Incoloy 800 / 800H / 800HT Slip on Flange

Incoloy 800 / 800H / 800HT Long Weld Neck Flange

Incoloy 800 / 800H / 800HT Spectacle Blind Flange

Incoloy 800 / 800H / 800HT Socket Weld Flange

ASME SB564 Incoloy 800 / 800H / 800HT Pipe Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 800	1.4876	N08800	NCF 800	NA 15	ЭИ670	Z8NC32-21	X10NiCrAlTi32-20	XH32
Incoloy 800H	1.4958 / 1.4876	N08810	NCF 800H	NA 15(H)	ЭИ670	Z8NC33-21	X5NiCrAlTi31-20	XH32T
Incoloy 800HT	1.4859 / 1.4876	N08811	NCF 800HT	NA 15(HT)	ЭИ670	-	X8NiCrAlTi32-21	XH32T

Chemical Composition of Grade 800 / 800H / 800HT Incoloy Plate Flanges

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 800	0.10 max	1.50 max	1.00 max	0.015max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800H	0.05 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60
Incoloy 800HT	0.06 – 0.10	1.50 max	1.00 max	0.015 max	0.75 max	39.50 min	30.00 – 35.00	19.00 – 23.00	0.15 – 0.60	0.15 – 0.60

Mechanical Properties of ASTM B564 Alloy UNS N08800 Industrial Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 800 / 800H / 800HT	7.94 g/cm3	1385 °C (2525 °F)	Psi – 75,000 , MPa – 520	Psi – 30,000 , MPa – 205	30 %
