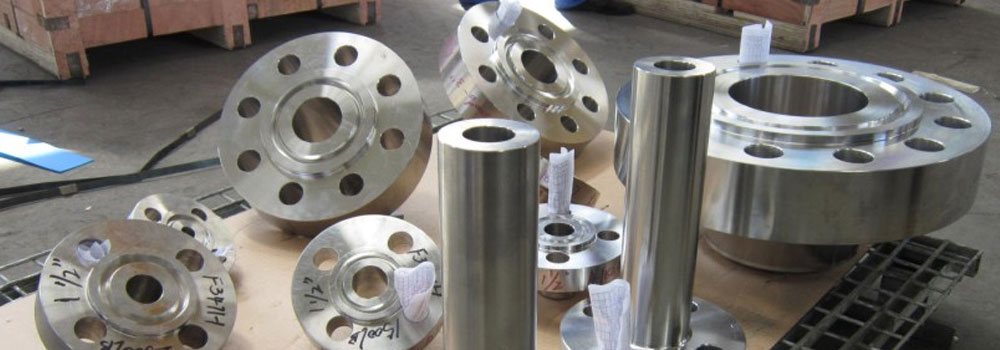

Incoloy 825 Flanges

825 Incoloy® Alloy Weld Neck Flanges, Incoloy UNS N08825 SORF Flanges Supplier in India.

High-performance nickel-iron-chromium alloy Incoloy 825 is made to withstand a variety of corrosive conditions with exceptional performance. Owing to their exceptional resistance to oxidation, sulfidation, and other types of corrosion, flanges produced of Incoloy 825 are highly prized in sectors including power production, oil & gas, and chemical processing. About 38–46% nickel, 19–23% chromium, 1.5–3% molybdenum, and a variety of additional elements like copper and titanium make up the alloy's makeup. Because of this combination, Incoloy 825 flanges exhibit remarkable resistance to oxidizing and reducing acids, making them ideal for handling abrasive chemicals and high temperatures.
Because of the hardness of the alloy, Incoloy 825 flanges require specialist equipment for manufacture and machining. But their durability and defense against chemical attacks make the initial outlay worthwhile. Industries may guarantee a longer service life and lower maintenance costs by using Incoloy 825 flanges, which will ultimately result in more dependable and efficient operations.

Incoloy Werkstoff Nr. 2.4858 RTJ Flanges, Incoloy 825 Long Weld Neck Flanges Exporter.

To meet diverse piping needs, Incoloy 825 flanges are offered in a variety of forms, such as slip-on, weld-neck, blind, and threaded. They are perfect for high-stress situations where other materials would fail because of their resilience to stress-corrosion cracking and pitting as well as their longevity. Because of the alloy's resistance to phosphoric and sulfuric acids, systems that use them are more dependable and safe. This is especially useful for procedures that use these chemicals.

Incoloy 825 Flanges Specification

Specification : ASTM B564 / ASME SB564

Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.

Size : 1/2″NB TO 60″NB

Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)s

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests

A Wide Range of ASTM B564 Incoloy 825 Flanges at Best Price.

Call : +91-9820814560 or Send Enquiry

Incoloy 825 Pipe Flanges Manufacturing Standards :

ASME/ANSI B 16.5	Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
ASME/ANSI B 16.47	Welding Neck Flange, Blind Flange [Series A & B]
PRESSURE CLASS	75, 150, 300, 400, 600, 900
ASME/ANSI B 16.36	Welding Neck Flange, Slip on Flange, Threaded Flange
PRESSURE CLASS	300, 400, 600, 900, 1500, 2500
BS 4504 SEC 3.1	Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 40
BS 4504[PART 1]	Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange
PRESSURE CLASS	PN 2.5 TO PN 400
BS 1560 BOSS	Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange
PRESSURE CLASS	150, 300, 400, 600, 900, 1500, 2500
BS10	Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange
TABLE	D, E, F, H
DIN FLANGES	DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673
PRESSURE CLASS	PN 6 TO PN 100

Incoloy 825 Plate Flanges Available Type

Incoloy 825 Blind Flange

Incoloy 825 Threaded Flange

Incoloy 825 Orifice Flange

Incoloy 825 Weld Neck Flange

Incoloy 825 Slip on Flange

Incoloy 825 Long Weld Neck Flange

Incoloy 825 Spectacle Blind Flange

Incoloy 825 Socket Weld Flange

ASME SB564 Incoloy 825 Pipe Flanges Equivalent Standards

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Chemical Composition of Grade 825 Incoloy Plate Flanges

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
Incoloy 825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Mechanical Properties of ASTM B564 Alloy UNS N08825 Industrial Flanges

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Incoloy 825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Other Types of 825 Incoloy Flanges

Incoloy 825 Flange
Incoloy 825 Threaded Flanges
Incoloy 825 Socket weld Flanges
ASTM B564 Incoloy 825 Slip on Flanges
825 Incoloy Weld Neck Flanges
Incoloy 825 Lap Joint Flanges
Incoloy 825 Blind Flanges
Alloy 825 Pipe Flanges Stockist
Alloy 825 Plate Flanges Supplier
ASME SB564 825 Incoloy Spectacle Blind Flange
ASME B16.5 825 Incoloy® Alloy Spacer
Incoloy JIS NCF 825 Nippolet Flange
825 Incoloy Hydraulic SAE Flanges Exporter
N08825 Incoloy Flexible Hose Flange
2.4858 Incoloy Tongue & Groove Flange Specification

825 Incoloy Orifice Flanges
825 Incoloy Forged Flanges
825 Incoloy SORF Flange
ASTM B564 Grade 825 Alloy Ring Type Joint Flange
Incoloy 825 WNRF Flange Distributor
Incoloy 825 Puddle Flange Nipple
Incoloy 825 Long Weld Neck Flange Price
ASTM B564 825 Incoloy Square Flanges
Incoloy UNS N08825 Loose Flanges
Incoloy DIN 2.4858 Weldo Flange
825 Incoloy® Alloy Reducing Flanges
Incoloy 825 Screwed Flanges Manufacturer
825 Nickel Alloy RTJ Flanges Dealer
Nickel Alloy 2.4858 BLRF Flanges
Incoloy® Alloy 825 Flanges
