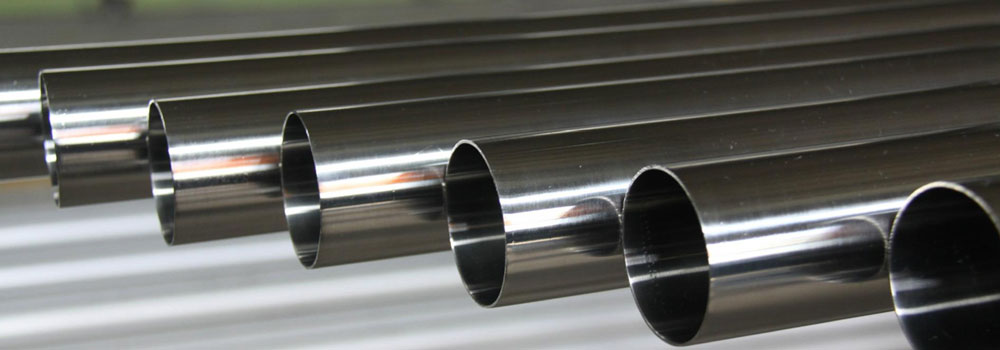

Stainless Steel 304L Pipes

Stainless Steel 304L Seamless Pipe, SS TP304L SS Flexible Hose Pipe Supplier in India.

A variation of the 304 grade known as stainless steel 304L pipes is identified by its reduced carbon content, which is usually 0.03% or less. This alteration has a number of advantages, especially for applications that call for improved resistance to sensitization during welding processes and weldability. Like the regular 304 grade, 304L stainless steel has a composition of roughly 18% chromium and 8% nickel. 304L's lower carbon content, however, reduces the possibility of carbide precipitation during welding, which in some high-temperature applications can result in decreased corrosion resistance and structural integrity. As a result, 304L is particularly beneficial in settings where welding is frequent and strong corrosion resistance is required.
Pharmaceuticals, food and beverage, petrochemical, and chemical processing are among of the areas in which 304L pipes find widespread use. They can be used in difficult conditions and with corrosive substances because of their resilience to oxidation and corrosion. Furthermore, applications requiring excellent mechanical qualities, such as those involving high-temperature services and harsh environments, frequently use 304L pipes.

ASTM A312 Stainless Steel 304L Pipe

Stainless Steel 304L ERW Pipe, S30403 SS Hexagonal Pipe Exporter.

Mechanically speaking, 304L stainless steel pipes have yield strengths of roughly 170 MPa and tensile strengths of about 485 MPa. They can tolerate temperatures as high as 925°C continuously and as high as 870°C sometimes, and they still function well at high temperatures. Additionally, the reduced carbon concentration improves the ductility and toughness of 304L pipes, making them simpler to form and manufacture.

Stainless Steel TP 304L Pipes Specification

Pipe Specification : ASTM A312, A358 / ASME SA312, SA358

Dimension Standard : ANSI B36.19M, ANSI B36.10

Outside Diameter (OD) : 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size pipes available Ex-stock

Thickness Range : 0.3mm – 50 mm

Schedule : SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless Pipe, Welded Pipe, ERW Pipe, EFW Pipe, Fabricated Pipe, CDW

Form : Round Pipes, Square Pipes, Rectangular Pipe

Length : Single Random, Double Random & Cut Length

End : Plain End, Beveled End, Threaded

End Protection : Plastic Caps

Outside Finish : 2B, No.1, No.4, No.8 Mirror Finish

Finish : Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

External Coating : 3LPE / 3LPP/ FBE/ DFBE/ PP

Origin : Indian Origin, European Origin, Japanese Origin

Testing and Documents : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports

Packing : Packed in Wooden Boxes, Bubble wraps, Steel Strips Bundled, or as per Customers Requests


A Wide Range of ASTM A312 TP 304L Stainless Steel Pipes at Best Price.

Call : +91-9820814560 or Send Enquiry

ASTM A312 TP 304L Stainless Steel Pipes Size Range
NPS OD SCH 5S SCH 10S SCH 40S SCH 80S
1/4 13.72 1.65 2.24 3.02
3/8 17.15 1.65 2.31 3.2
1/2 21.34 1.65 2.11 2.77 3.73
3/4 26.67 1.65 2.11 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55
1.25 42.16 1.65 2.77 3.56 4.85
1.5 48.26 1.65 2.77 3.68 5.08
2 60.33 1.65 2.77 3.91 5.54
2.5 73.03 2.11 3.05 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62
3.5 101.6 2.11 3.05 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53
6 168.28 2.77 3.4 7.11 10.97
8 219.08 2.77 3.76 8.18 12.7
10 273.05 3.4 4.19 9.27 12.7
12 323.85 3.96 4.57 9.53 12.7
14 355.6 3.96 4.78 9.53 12.7
16 406.4 4.19 4.78 9.53 12.7
18 457.2 4.19 4.78 9.53 12.7
20 508 4.78 5.54 9.53 12.7
22 558.8 4.78 5.54
24 609.6 5.54 6.35 9.53 12.7
26 660.4
28 711.2
30 762 6.35 7.92


TP 304L Stainless Steel Pipe Available Type
Stainless Steel 304L Seamless Pipe

Stainless Steel 304L Seamless Pipe

Stainless Steel 304L Welded Pipe

Stainless Steel 304L Welded Pipe

Stainless Steel 304L ERW Pipe

Stainless Steel 304L ERW Pipe

Stainless Steel 304L EFW Pipe

Stainless Steel 304L EFW Pipe

Stainless Steel 304L Electropolish Pipe

Stainless Steel 304L Electropolish Pipe

Stainless Steel 304L Square Pipe

Stainless Steel 304L Square Pipe

Stainless Steel 304L Rectangular Pipe

Stainless Steel 304L Rectangular Pipe

Stainless Steel 304L Round Pipe

Stainless Steel 304L Round Pipe


ASME SA312 Stainless Steel 304L Seamless Pipes Equivalent Standards
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18‐10 X2CrNi18-9 / X2CrNi19-11

Chemical Composition of Grade TP 304L Stainless Steel Pipes
Grade C Mn Si P S Cr Mo Ni N
SS 304L 0.35 max 2 max 1.00 max 0.045 max 0.03 max 18 – 20 - 8 – 13 -

Mechanical Properties of ASTM A312 SS UNS S30403 Pipes
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
